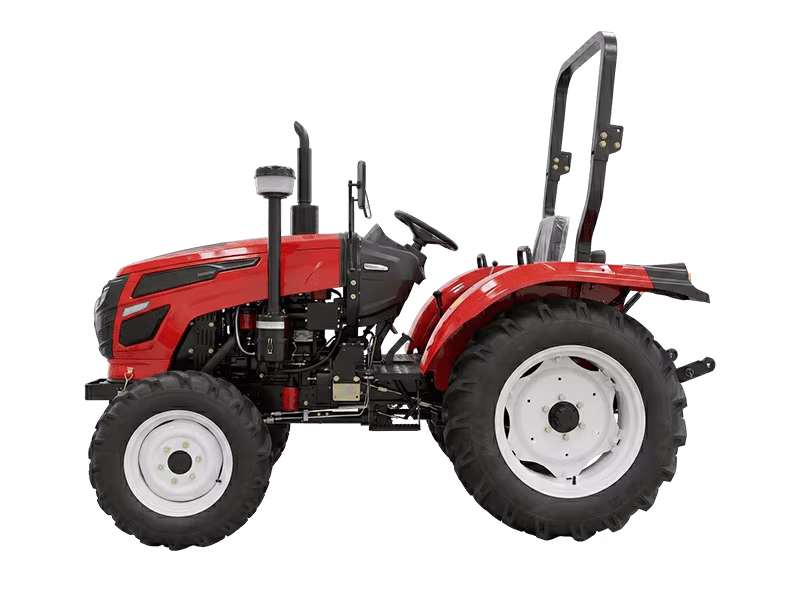

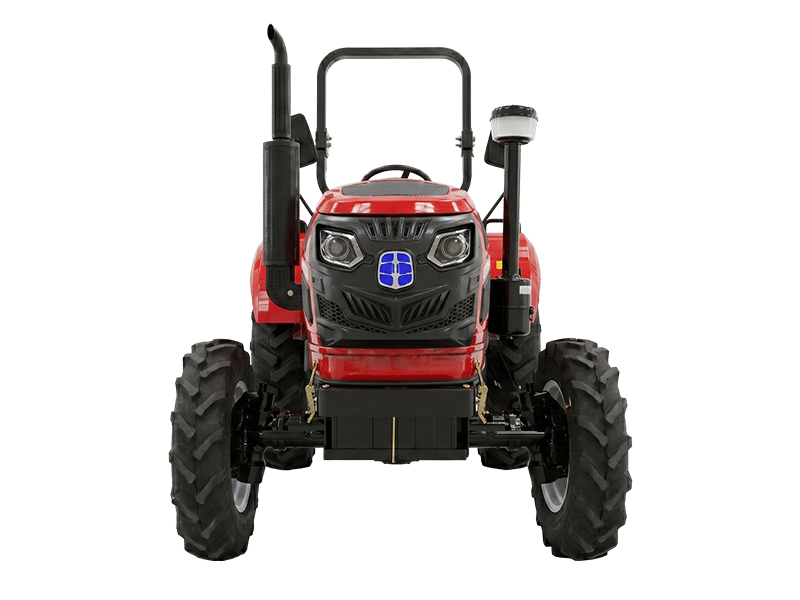

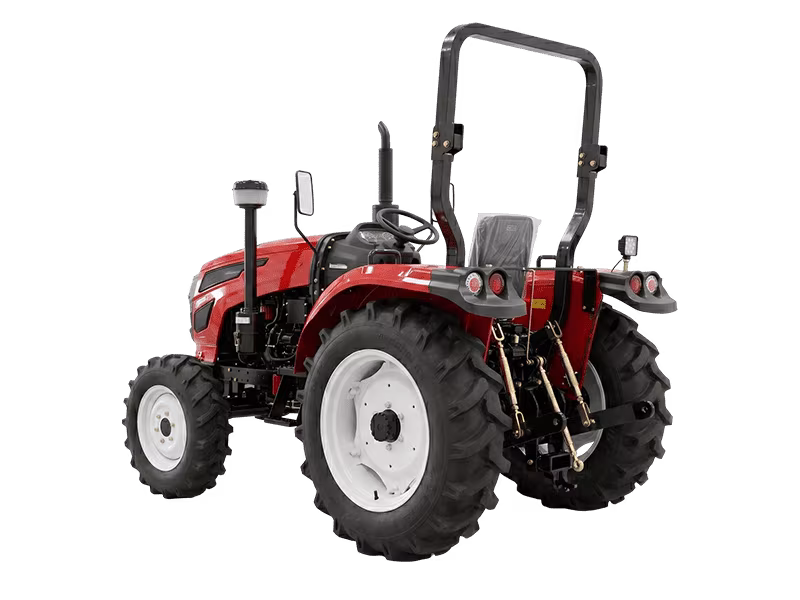

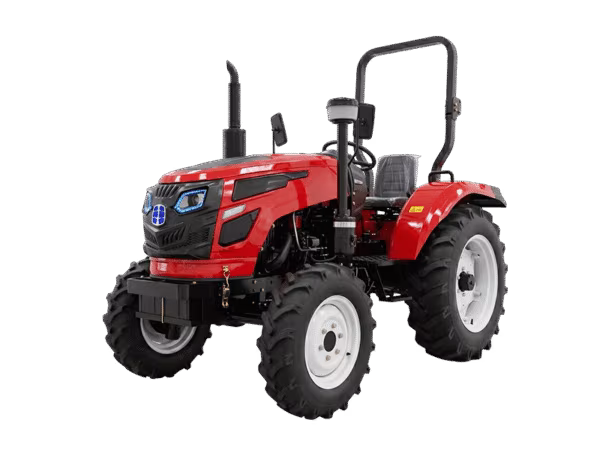

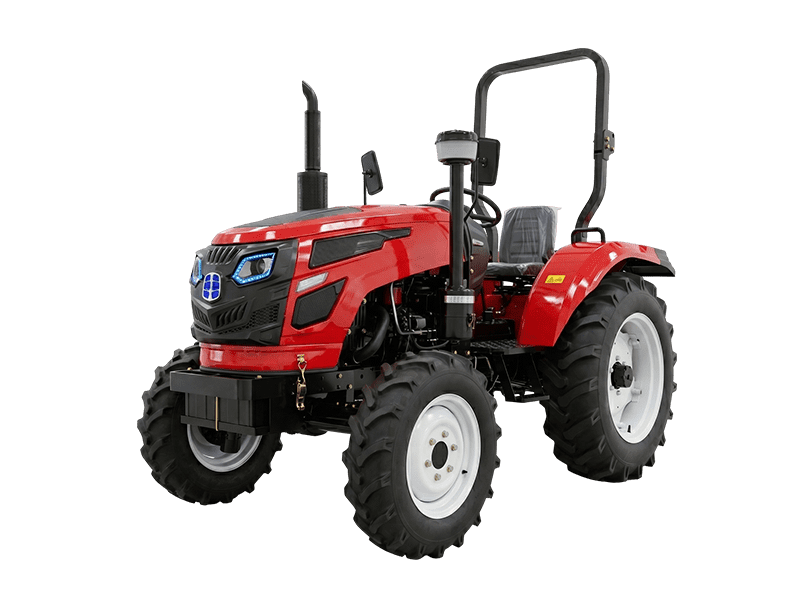

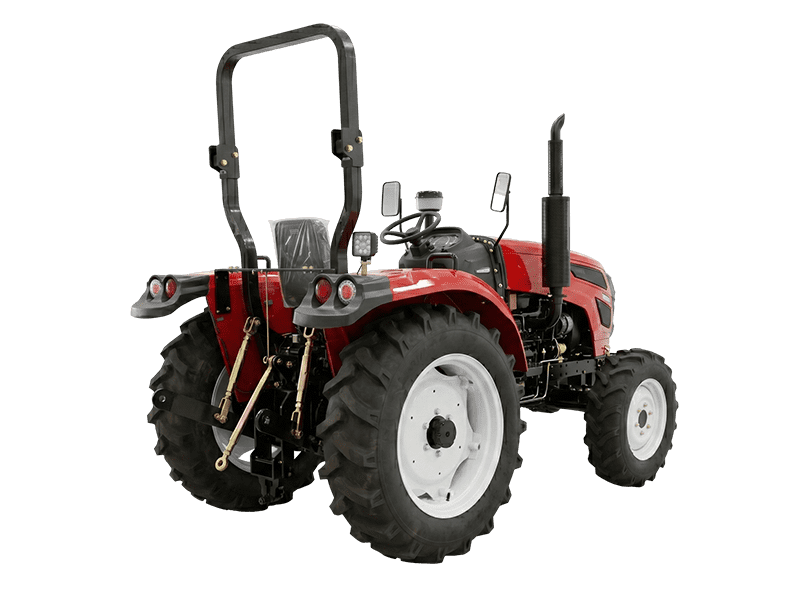

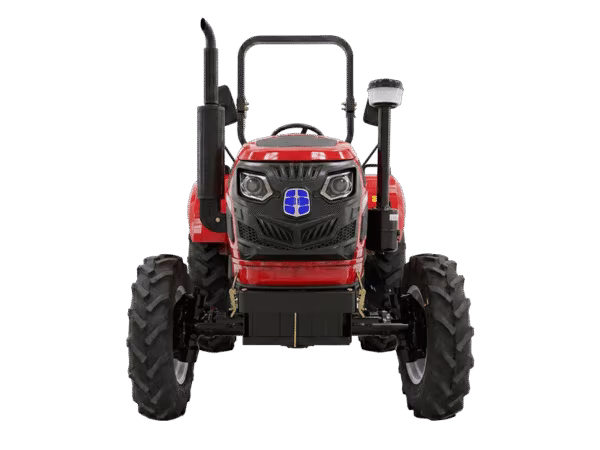

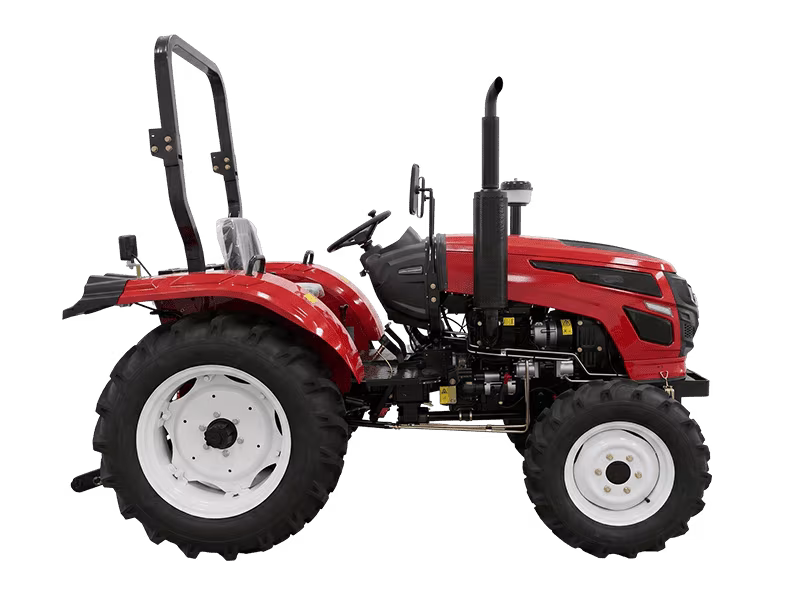

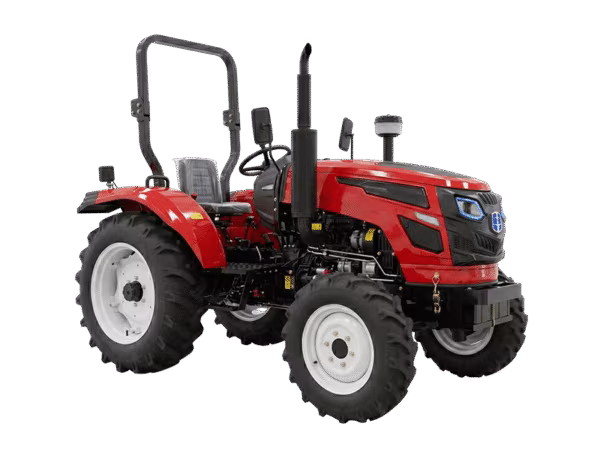

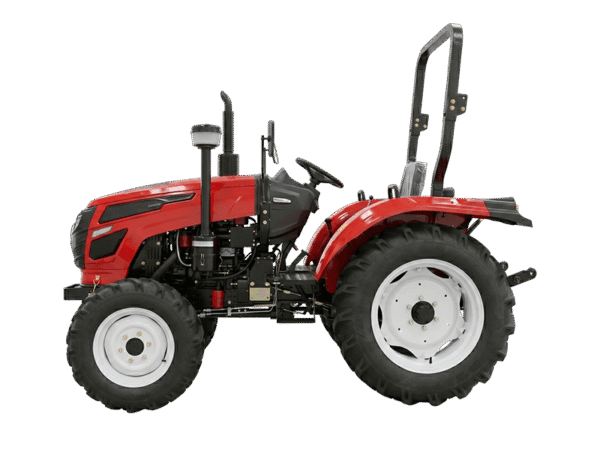

The Weiwo 304 is a 30HP 4WD ultra-compact entry-level tractor, powered by a LAIDONG 3-cylinder diesel engine, with full hydraulic steering, wet disc brakes, and optional 2-way hydraulic outputs. Balancing enhanced 30HP power with an ultra-narrow 1400mm body and optimized fuel consumption, it is ideal for narrow-row orchard management, commercial greenhouse operations, and small-plot family farming, with rich optional configurations for global agricultural markets.
To meet the diverse needs of global regional markets, the 304 offers a comprehensive range of optional equipment: front ballast, single-layer rear ballast, ROPS, canopy, fan cab, heating cab, air compressor, and swing traction. Whether you need a standard compact workhorse for daily small family farm work, or a fully configured model for intensive commercial orchard and greenhouse operations, the Weiwo 304 can be tailored to your exact requirements.
| Technical Specifications | Model 304 | |
|---|---|---|
| Overall Dimension (L×W×H) | mm | 3250×1400×2000 |
| Min. Operating Weight | kg | 1360 |
| Wheelbase | mm | 1680 |
| Wheel Track (front/rear) | mm | 1100 / 1100-1200 |
| Engine | ||
| Model | / | LAIDONG KM385BT |
| Type | / | Vertical, water-cooling, 4-stroke |
| Qty of Cylinders | cylinder | 3 |
| Rated Power | HP/KW | 30HP / 22.1kW |
| Rated Speed | r/min | 2400 |
| Drive Train | ||
| Clutch | / | Single-stage type |
| Gearbox | / | (8+2) |
| Gear Shift Type | / | Meshing sleeve |
| Steering & Brake | ||
| Steering Type | / | Full hydraulic |
| Brake Type | / | Dry drum brake |
| Walking Device | ||
| Tire Size (front/rear) | / | 6.0-16 / 9.5-24 |

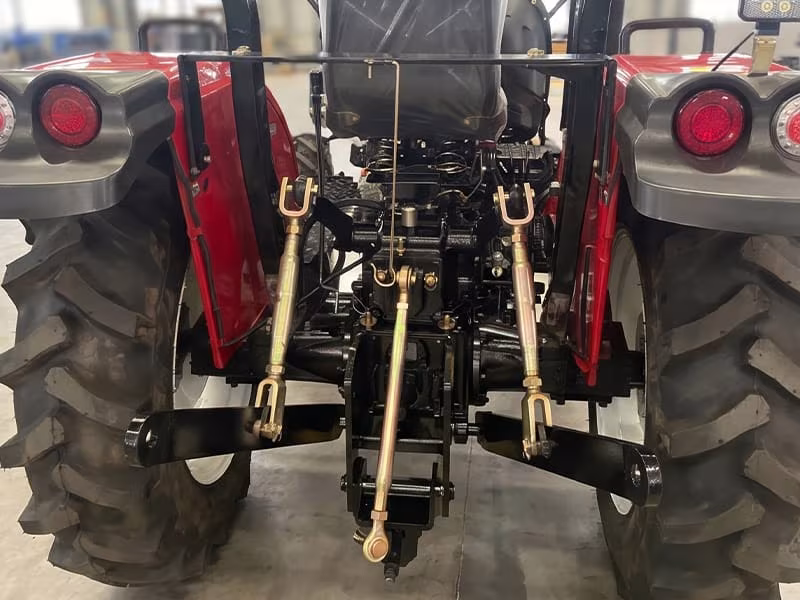

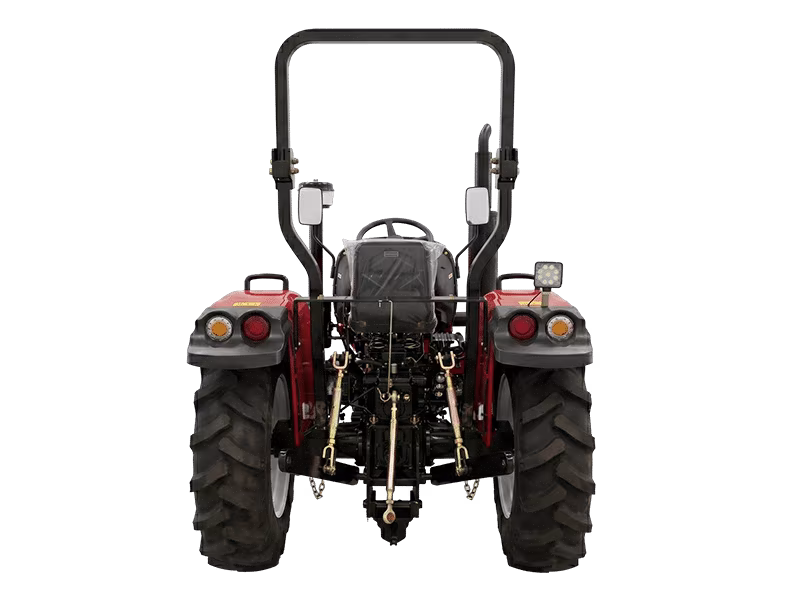

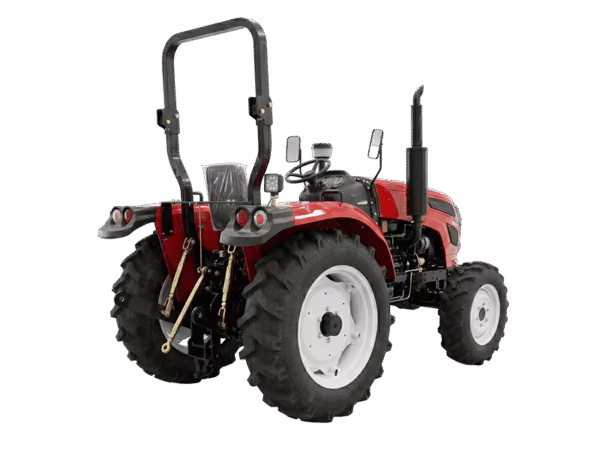

| Suspension Device Type | / | Rear, three-point suspension |
| Suspension Category | / | Category I |
| Working Device | ||
| Tillage Depth Adjustment | / | External forced lifter |
| Hydraulic Output | group | 1 (Optional 2) |
| Standard PTO Speed | r/min | 540 / 720 (6-splines) |
| Optional Equipment | ||
|
Front ballast
Rear ballast (one layer)
ROPS
Canopy
Fan cab
Heating cab
Air compressor
Swing traction
|
||
The Weiwo 304 is a 30HP 4WD ultra-compact entry-level tractor, powered by a LAIDONG 3-cylinder diesel engine, with full hydraulic steering, wet disc brakes, and optional 2-way hydraulic outputs. Balancing enhanced 30HP power with an ultra-narrow 1400mm body and optimized fuel consumption, it is ideal for narrow-row orchard management, commercial greenhouse operations, and small-plot family farming, with rich optional configurations for global agricultural markets.
To meet the diverse needs of global regional markets, the 304 offers a comprehensive range of optional equipment: front ballast, single-layer rear ballast, ROPS, canopy, fan cab, heating cab, air compressor, and swing traction. Whether you need a standard compact workhorse for daily small family farm work, or a fully configured model for intensive commercial orchard and greenhouse operations, the Weihuo 304 can be tailored to your exact requirements.
| Technical Specifications | Model 304 | |
|---|---|---|
| Overall Dimension (L×W×H) | mm | 3250×1400×2000 |
| Min. Operating Weight | kg | 1360 |
| Wheelbase | mm | 1680 |
| Wheel Track (front/rear) | mm | 1100 / 1100-1200 |
| Engine | ||
| Model | / | LAIDONG KM385BT |
| Type | / | Vertical, water-cooling, 4-stroke |
| Qty of Cylinders | cylinder | 3 |
| Rated Power | HP/KW | 30HP / 18.4kW |
| Rated Speed | r/min | 2400 |
| Drive Train | ||
| Clutch | / | Single-stage type |
| Gearbox | / | (8+2) |
| Gear Shift Type | / | Meshing sleeve |
| Steering & Brake | ||
| Steering Type | / | Full hydraulic |
| Brake Type | / | Wet disc type |
| Walking Device | ||
| Tire Size (front/rear) | / | 6.0-16 / 9.5-24 |
| Suspension Device Type | / | Rear, two-point suspension |
| Suspension Category | / | Category I |
| Working Device | ||
| Tillage Depth Adjustment | / | External forced lifter |
| Hydraulic Output | group | 1 (Optional 2) |
| Standard PTO Speed | r/min | 540 / 720 (6-splines) |
| Optional Equipment | ||
|
Front ballast
Rear ballast (one layer)
ROPS
Canopy
Fan cab
Heating cab
Air compressor
Swing traction
|
||
Advantages
Compact Orchard Design
Ultra-narrow 1400mm body and short wheelbase fit tight orchard rows, greenhouses and hilly terrain, enabling smooth access in confined spaces.
Fuel-Efficient Power

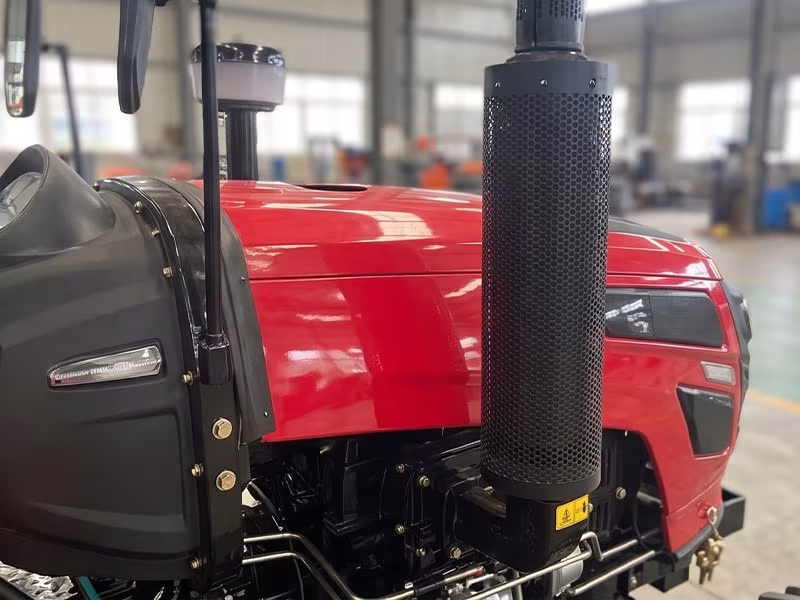

Proven Laidong diesel engine delivers stable, reliable power with low fuel consumption and long service life, reducing daily operating costs.
Smooth 4WD Control

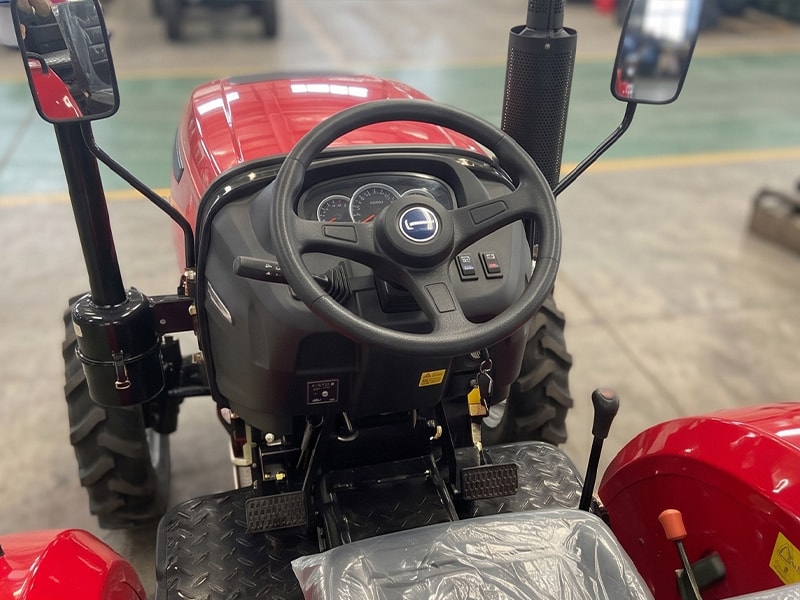

Full hydraulic steering and 4WD drive offer light, precise control with strong traction, adapting reliably to muddy fields and uneven terrain.
Versatile & Low Upkeep

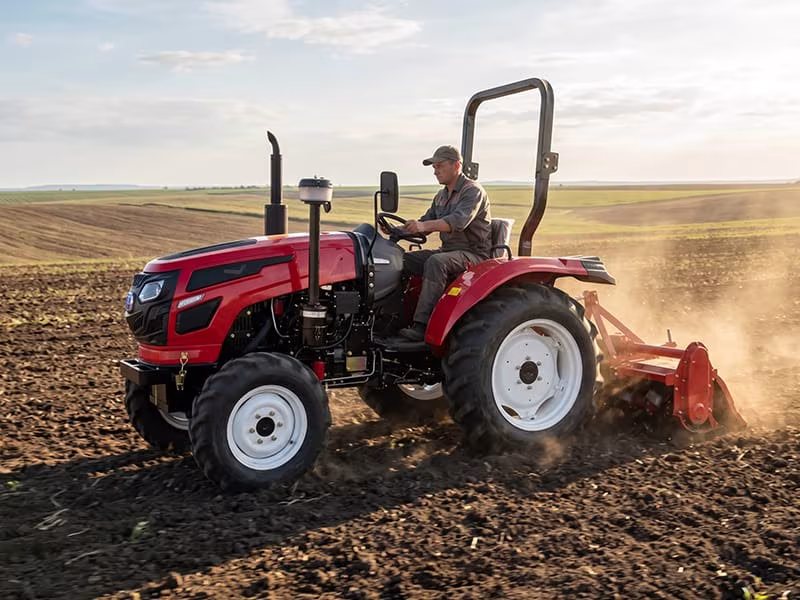

Compatible with most farm implements via standard suspension and dual hydraulics, with a simple structure for easy, low-cost maintenance.
